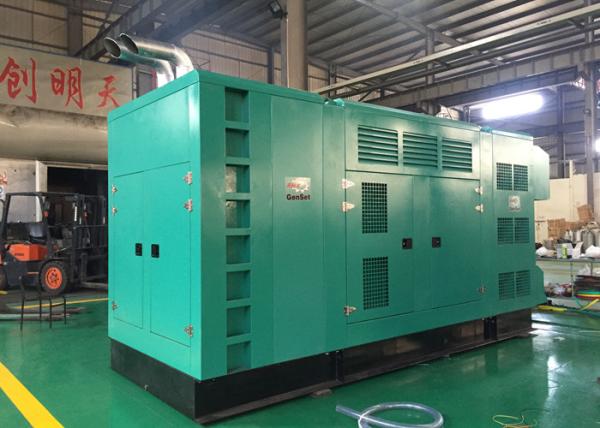

625KVA Prime Rating Soundproof Diesel Generator Set For Standby Power
Standard configuration of gensets:
- Engine: Cummins diesel engine
- Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection
- Alternator: Stamford brushless alternator
- Automatic control panel with ATS
- Soundproof canopy with 8 hours base fuel tank
Genset Specifications:
| Genset model | SCF688 |
| Genset rated power | 500KW / 625KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 900 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4500×1800×2200 |
| Gross weight (kg) | 5900 |
Engine Specifications:
| Diesel Engine |
| Brand | CCEC CUMMINS |
| Model | KTAA19-G6A |
| Engine structure | 6 cylinders vertical in line, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 19 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 13.0:1 |
| 100% Load fuel consumption (litre/h) | ≤121.2 |
| Lube capacity(L) | 38 |
Alternator Specifications:
| Alternator |
| Brand | FARADAY |
| Model | FD5L1-4 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Control System
ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically; While main power resumes balanced, it controls the generator set to shut down after cooled.
Supply scope of Silent Genset
1. Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator.
2. Brand new engine, with start motor.
3. Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.
4. Auto control panel, with LCD display.
5. Engine mounted battery-charging alternator.
5. Circuit Breaker, Exhaust Silencer
6. Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard.
7. Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset running under stablization.
8. Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand under extra cost)
9. External recessed emergency stop button for extra safety
10. The colors & Brands by your requests
11. Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator, water heater and oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter, Parallel system for your choice.
