Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2

Guangdong Sunkings Electric Co., Ltd
Contact Now

Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2

Brand Name : SHX

Model Number : SCE125

Certification : ISO9001:2015, CE, TUV , BV

Place of Origin : Foshan, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 Sets per month

Delivery Time : 10 working days

Packaging Details : Standard export packing

Product name : 125KVA Mobile Generator

Power Factor : 0.8 Lagging

Voltage : 230/400V AC at 50/60 Hz (Adjustable)

Cylinder : 6L

Alternator : 100% Cooper, Brushless with AVR

Speed : 1500RPM / 1800RPM

Contact Now

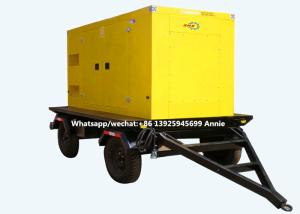

400V 125KVA Backup Portable Emergency Generator 1500Rpm Cummins Engine 6BTA5.9-G2

Genset Data: 400/230V, 50Hz, 3 Phase 4 Pole, 1500RPM.

Genset model SCE125
Genset rated power 100KW/125KVA
Rated voltage 230/400V (adjustable)
Rated current 180 Amp
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 4150×1600×1800
Gross weight (kg) 2000

Engine Specifications:

Diesel Engine
Brand DCEC CUMMINS
Model 6BTA5.9-G2
Engine structure 6 cylinders vertical in line, 4 stroke, turbocharged
Rotating speed 1500 RPM
Engine cooling method Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 5.9
Bore×Stroke(mm) 102×120
Compression ratio 17.5: 1
100% Load fuel consumption (litre/h) ≤24.8
Lube capacity(L) 16.3

Alternator Specifications:

Alternator
Brand ENGGA (Adjustable)
Model EG225-100N
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP21

Features:

  1. High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.
  2. The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.
  3. Compacted yet durable and dependable engine: Cummins engines contain up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
  4. Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.
  5. Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.
  6. Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.

Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2


Product Tags:

trailer mounted diesel generator



mobile electric generator


Wholesale Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2 from china suppliers

Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2 Images
