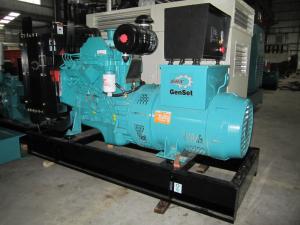

Prime Rating 150 Kw Continuous Duty Diesel Generator 24V Batteries
1. Prime power 150 Kw, standby power 165 Kw.
2. Powered by Cummins engine.
3. Original Engga alternator.
4. Delixi air breaker.
5. Electric start with batteries.
6. Smartgen controller.
7. ATS is for option.
Genset Specifications:
| Genset model |
SCE188 |
| Genset rated power |
150KW / 188KVA |
| Rated voltage |
400/230V (adjustable) |
| Rated current |
270 Amps |
| Frequency |
50 Hz |
| Power factor |
0.8 Lagging |
| Connecting type |
3 phase 4 wire |
| Cooling system |
Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm |
2400×850×1400 |
| Gross weight (kg) |
1500 |
Engine Specifications:
| Diesel Engine |
| Brand |
DCEC CUMMINS |
| Model |
6CTA8.3-G2 |
| Engine type |
6 cylinders in Line,4 stroke, direct injection |
| Aspiration |
Turbocharged and water-to-air intercooled |
| Rotating speed |
1500 RPM |
| Engine cooling system |
Water-cooled |
| Speed governing system |
Electronic speed governor |
| Starting method |
By 24V batteries |
| Engine filter system |
Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) |
8.3 |
| Bore×Stroke(mm) |
114×135 |
| Compression ratio |
17.3:1 |
| 100% Load fuel consumption (l/h) |
≤37.1 |
| Lube capacity(L) |
23.8 |
Alternator Specifications:
| Alternator |
| Brand |
ENGGA |
| Model |
EG280-160N |
| Excite type |
Brushless self-excited AVR regulation |
| Connecting type |
3 phase 4 pole |
| Steady frequency change |
0.50% |
| No load voltage |
≥95%-105% |
| Steady voltage |
≤±1% |
| Insulation class |
Class H |
| Protection grade |
IP21 |
Standard accessory list
1. Fuel connecting pipes 1 set.
2. 12V DC dry type battery c/w battery cables 2 sets.
3. Industrial type silencer c/w stainless steel flexible exhaust bellows 1 set.
4. Shock absorption rubbers 6 pcs.
5. The tool kit and manuals 1 set (English version).
Operating conditions of generator set:
1. Altitude: ≤1500 m.
2. Ambient Temperature: -15℃~50℃.
3. Relative air humidity: ≤90%.
4. The site can't has electric conduction dust and corrosive gas that destroies metal insulation.
5. The site can't has explosion danger.
